Scanstrut DS30-S Vertical Cable Seal - Stainless Steel [DS30-S]

Description

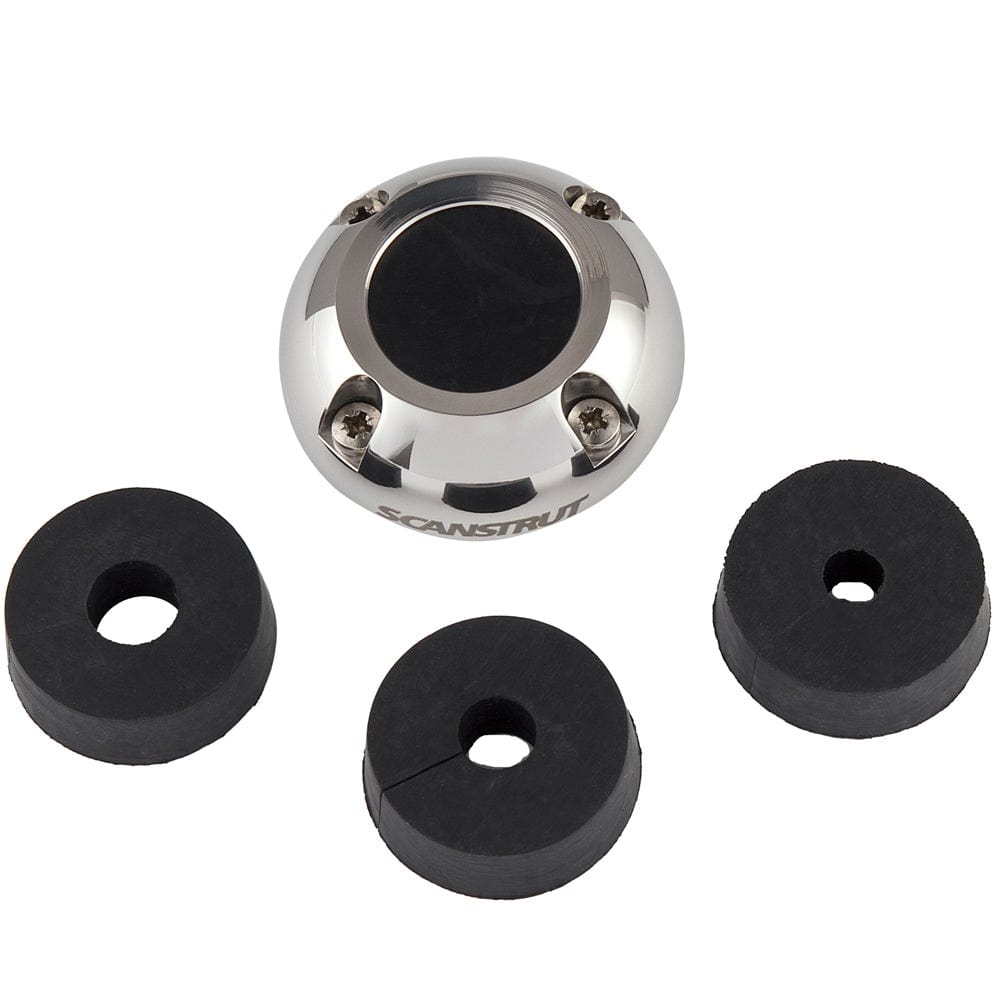

DS30-S Vertical Cable Seal - Stainless Steel

Scanstrut premium IP68 waterproof cable seal provides easy fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables.

Features:

• Watertight installation - 100% waterproof with an IP68 rating
• Easy and reliable installation - each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
• No Need to Remove Cable Connectors - split-seal option does not require connector removal during install.
•  Multi-Functional Dome Shape - the aesthetic dome-shaped profile provides a stronger, impact-resistant design and outer dome provides additional water shield.

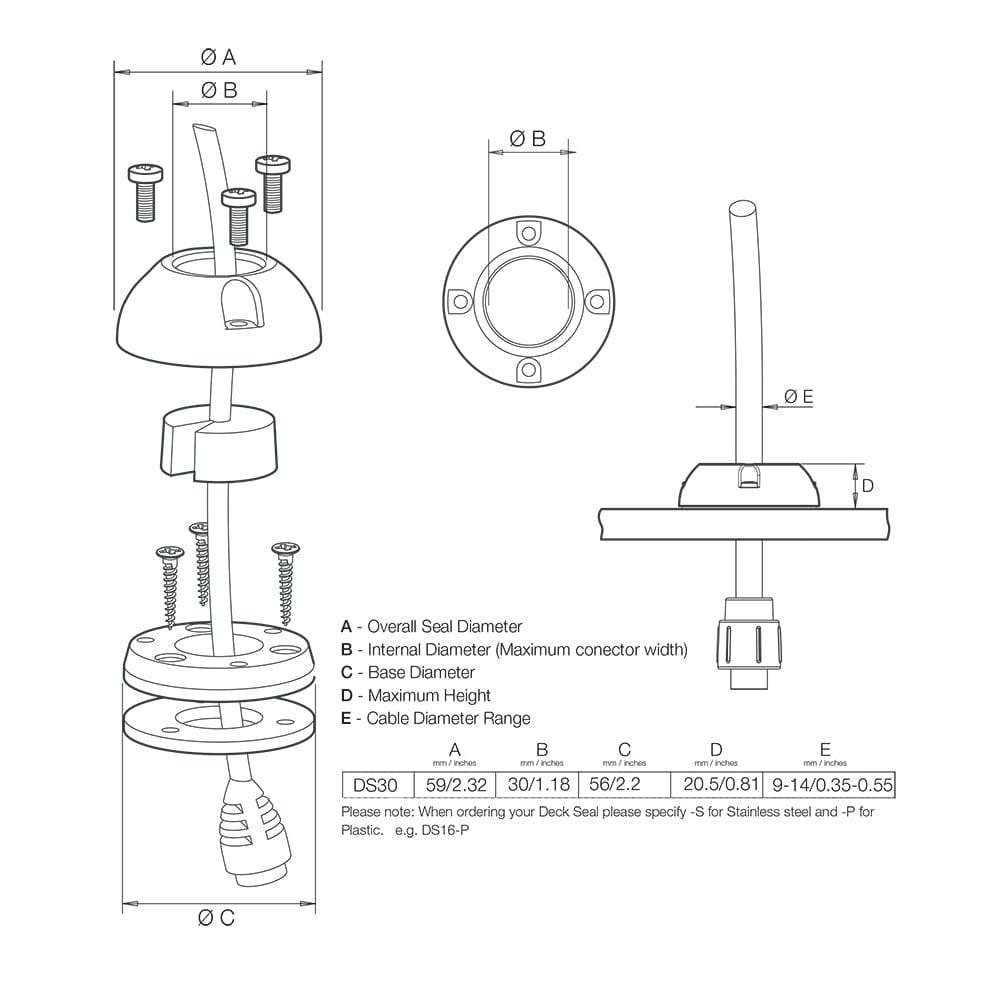

Technical Specifications:

• Fits cable size (diameter) - .35" to .55" (9 - 14 mm)
• Fits connector size up to 1.18" (30 mm) in diameter
• Height - .81" (20.5 mm)
• Color - Stainless
• Orientation - Vertical
• Material - Stainless Steel

In the Box:

• Cable seal
• Mounting hardware
• Installation manual

*Sold as an Individual

Specifications:

• Type: Deck Seal
• Box Dimensions: 1"H x 4"W x 6"L WT: 1 lbs
• UPC: 5060114792814
